測試與量測

Antenna test systems and OTA chambers

Discover the wireless device testers and over-the-air (OTA) antenna testing solutions from Rohde & Schwarz

With our well-established experience in innovative solutions based on top-quality engineering, Rohde & Schwarz provides you with leading antenna test systems and OTA chambers.

Our solutions are designed with ease of use in mind. We make sure that, whenever possible, legacy technologies are supported while the latest technologies are presented in a future-proof way. Our reliable solutions are complemented by a global support network of skilled technicians and customer care personnel.

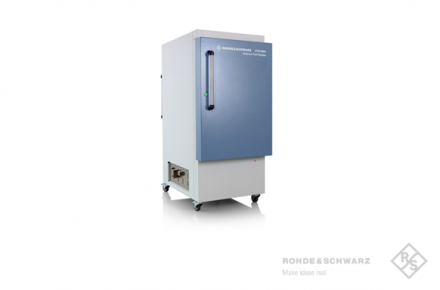

R&S®ATS1800C compact 3GPP-compliant OTA chamber for 5G NR mmWave signals
5G NR device testing in a small footprint
R&S®ATS1800C compact 3GPP-compliant OTA chamber for 5G NR mmWave signals
● 3GPP compliant and transportable CATR test chamber
● High-precision state-of-the-art reflector with rolled edges
● Unparalleled quiet zone size with a footprint of 1.3 m2
● Automatic feed switcher for 6 GHZ to 90 GHz OOB testing
● Extreme temperature testing from -40°C to +85°C
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®ATS1800CFreq. range 18 GHz - 90 GHz
Shielding eff. >90 dB (typ.)
Outer dimensions (W x D x H in m) 0.9 x 1.5 x 2.0
Quiet zone Ø 30 cm
Application R&D, Conformance & pre-conformance (RF, LBS, Netop, PCT, PQA)		加入詢價
不確定需求規格?立即點擊讓我們協助您 CLOSE
R&S®ATS1500C Antenna Test Chamber for Automotive Radar
Ideal for development, validation and calibration
R&S®ATS1500C Antenna Test Chamber for Automotive Radar
● In-band OTA measurements on 77/79 GHz automotive radar sensors
● CATR with bidirectional parabolic reflector on a 1.3 m2 footprint
● Capable of testing radar modules with aperture size up to 30 cm
● High speed, high precision 3D tilt-tilt positioner
● Ultra low reflectivity and exceptional shielding effectiveness
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®ATS1500CFreq. range 6 GHz - 110 GHz
Shielding eff. >90 dB (typ.)
Outer dimensions (W x D x H in m) 0.9 x 1.6 x 2
Quiet zone Ø 30 cm
Application Automotive radar R&D, calibration, validation, pre-compliance testing		加入詢價
不確定需求規格?立即點擊讓我們協助您 CLOSE
R&S®ATS800R Rack-mountable CATR chamber for 5G NR mmWave signals
5G NR device testing in a very small footprint
R&S®ATS800R Rack-mountable CATR chamber for 5G NR mmWave signals
● Very compact and portable CATR test chamber
● High-precision state-of-the-art reflector with rolled edges
● Unparalleled quiet zone size with a footprint of 0.7 m2
● Extreme temperature testing from -40 °C to +85 °C
● High shielding effectiveness for trouble-free NSA signaling testing
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®ATS800RFreq. range 20 GHz - 50 GHz
Shielding eff. >40 dB (typ.)
Outer dimensions (W x D x H in m) 0.8 x 1.0 x 2.1
Quiet zone Ø 20 cm
Application R&D, pre-conformance (RF, LBS, Netop, PCT, PQA)		加入詢價
不確定需求規格?立即點擊讓我們協助您 CLOSE
R&S®ATS800B CATR Benchtop antenna test system
R&S®ATS800B CATR Benchtop antenna test system
●Very compact far-field over-the-air (OTA) test system based on compact antenna test range (CATR) technology
●Unrivaled quiet zone size within 0.8 m2 footprint
●State-of-the-art reflector ensuring a high quiet zone accuracy
●Unique benchtop CATR system supporting over 50 GHz
●Indirect far-field method (approved by 3GPP for 5G OTA testing)
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®ATS800B加入詢價
不確定需求規格?立即點擊讓我們協助您 CLOSE
R&S®ATS1000 antenna test system
mmwave antenna and device characterization in a small footprint
R&S®ATS1000 antenna test system
●Frequency range of chamber and probe antenna:18 GHz to 87 GHz
●Direct Farfield System with 5 cm quiet zone size
●Designed for maximum compactness and mobility
●Extremely fast and accurate 3D antenna characterization
●Greater than 50 dB shielding effectiveness up to 87 GHz
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®ATS1000ATS1000 antenna test system for millimeter wave antenna testing加入詢價
不確定需求規格?立即點擊讓我們協助您 CLOSE
R&S®CMQ500 Shielding cube
R&S®CMQ500 Shielding cube
●Ready for 5G FR1 & FR2 signaling tests
●Optimized OTA test system with R&S®CMX500 and RRH for R&D
●Best OTA system accuracy and repeatability
●Reduced floor space: fits into 19" racks
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®CMQ500 Shielding cube加入詢價
不確定需求規格?立即點擊讓我們協助您 CLOSE
R&S®CMQ200 Shielding cube
R&S®CMQ200 Shielding cube
●Ready for 5G and other technologies
●Reduced floor space: fits into 19" racks
●Cost-efficient for large production lot sizes
●Specially designed compact antennas & Power sensors with CW source available
●Antennas with special mounts and swivel heads
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®CMQ200 Shielding cube加入詢價
不確定需求規格?立即點擊讓我們協助您 CLOSE
R&S®DST200 RF diagnostic chamber
Accurate radiated testing of wireless devices
R&S®DST200 RF diagnostic chamber
●Anechoic RF chamber with highly effective shielding > 110 dB
●Wide frequency range from 400 MHz to 18 GHz
●Automated 3D positioners for OTA measurements
●Compact dimension suitable for any lab environment
●Unique design to maintain long-term high shielding effectiveness
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®DST200 RF diagnostic chamber加入詢價
不確定需求規格?立即點擊讓我們協助您 CLOSE
R&S®TS7124 RF Shielded Box
R&S®TS7124 RF Shielded Box
●Shielding effectiveness > 80 dB
●Customizable antenna configuration
●More interior test space
●Softclose security mechanism to prevent injuries
●robust design more than 1 million opening- and closing-cycles
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®TS7124ASShielding effectiveness > 80 dB at 6 GHz
Frequency Range 300 MHz to 20 GHz
Product Stage Production Stage; Feedthroughs at the rear side
Chamber Size 450 mm × 400 mm × 480 mm (17.72 in × 15.75 in × 18.90 in)
DUT Size 300 mm × 334 mm × 355 mm (11.81 in × 13.15 in × 13.89		加入詢價
R&S®TS7124ASShielding effectiveness > 80 dB at 6 GHz
Frequency Range 300 MHz to 20 GHz
Product Stage Production Stage; Feedthroughs at the front and at the rear side
Chamber Size 450 mm × 400 mm × 480 mm (17.72 in × 15.75 in × 18.90 in)
DUT Size 300 mm × 334 mm × 355 mm (11.81 in × 13.15 in × 13.89		加入詢價
R&S®TS7124MShielding effectiveness > 80 dB at 6 GHz
Frequency Range 300 MHz to 20 GHz
Product Stage Design Stage, Feedthroughs at the rear side
Chamber Size 450 mm × 400 mm × 480 mm (17.72 in × 15.75 in × 18.90 in)
DUT Size 300 mm × 334 mm × 355 mm (11.81 in × 13.15 in × 13.89		加入詢價
R&S®TS7124MShielding effectiveness > 80 dB at 6 GHz
Frequency Range 300 MHz to 20 GHz
Product Stage Design Stage; Feedthroughs at the front and at the rear side
Chamber Size 450 mm × 400 mm × 480 mm (17.72 in × 15.75 in × 18.90 in)
DUT Size 300 mm × 334 mm × 355 mm (11.81 in × 13.15 in × 13.89		加入詢價
不確定需求規格?立即點擊讓我們協助您 CLOSE
R&S®CMW-Z10 RF Shield Box
R&S®CMW-Z10 RF Shield Box
●Shielding effectiveness > 80 dB (0.4 to 4 GHz)
●Frequency range up to 6 GHz
●Minimum floor space
●Robust design
●Ergonomic closing mechanism
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®CMW-Z10 RF Shield Box加入詢價
不確定需求規格?立即點擊讓我們協助您 CLOSE
R&S®PWC200 Plane wave converter
For 5G massive MIMO base station testing
R&S®PWC200 Plane wave converter
●Phased antenna array to form plane waves within an adjustable quiet zone (e.g. 1m ø)
●No near-field to far-field transformation required
●Requires 4 times less space compared to CATR based systems
●Built in self test features
●For R&D and production testing
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®PWC200 Plane wave converter加入詢價
