Radar Echo Generation

Radar Echo Generation

Developing new automotive radar sensors, radar based Advanced Driver Assistance Systems (ADAS) or Autonomous Driving (AD) features have demanding challenges, during each step of the development process. Dynamic, flexible and scalable test concepts and test environments are required.

The R&S®AREG800A Automotive Radar Echo Generator together with the R&S®QAT100 advanced antenna array is an advanced and innovative key enabler for testing automotive radar sensors and ADAS/AD features. When operated together, independent artificial objects can be generated with individual object distance, object size, radial velocity and angular direction. This enables for the first time the generation of realistic driving scenarios for automotive radar sensors during development and ADAS/AD feature tests.

The R&S®AREG100A Automotive Radar Echo Generator is a robust solution tailored for production testing of automotive radar sensors. With the R&S®AREG100A, production engineers profit from a perfect balance of flexibility of test cases and at the same time simple and robust operation.

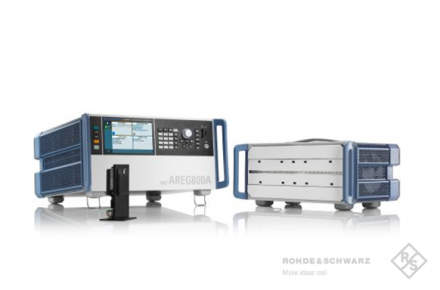

R&S®AREG800A automotive radar echo generator
R&S®AREG800A automotive radar echo generator
●Generation of multiple dynamic artificial objects with individual distance, object size, radial velocity and angular direction
●Fully harmonized with R&S®QAT100 advanced antenna array and classical mmW frontends for advanced tests in all automotive radar bands
●Future proof with instantaneous bandwidths of up to 4 GHz
●Generation of dynamic objects with minimum distances down to <4 m for short range radar testing
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®AREG8-B9Digital baseband with 1 GHz bandwidth, 1 IF path and 1 individual object加入詢價
R&S®AREG8-B63Analog stepped delay line for short object generation with 1 IF path and 1 indivdual object (coming soon)加入詢價
不確定需求規格?立即點擊讓我們協助您 CLOSE
R&S®QAT100 Advanced antenna arra
R&S®QAT100 Advanced antenna arra
●Extremely flexible and scalable system
●High radial resolution and field-of-view coverage
●4 GHz instantaneous RF bandwidth
●Reduced close-range reflections and multipath
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®QAT100 Advanced antenna array加入詢價
不確定需求規格?立即點擊讓我們協助您 CLOSE

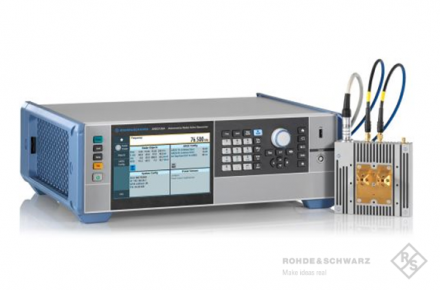

R&S®AREG100A automotive radar echo generator
R&S®AREG100A automotive radar echo generator
●Supports 24 GHz, 77 GHz and 79 GHz automotive radar sensors
●Future proof with instantaneous bandwidths of up to 4 GHz
●4 m minimum artificial object distance for short range radar testing
●Up to 4 artificial objects in fixed distances at the same time
●Controllable radial velocity for each artificial object individually or for all artificial objects together
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®AREG-B124DDual Antenna Frontend 24 GHz to 24.25 GHz加入詢價
R&S®AREG-B124SSingle Antenna Frontend 24 GHz to 24.25 GHz加入詢價
R&S®AREG-B177DDual Antenna Frontend 76 GHz to 77 GHz加入詢價
R&S®AREG-B181DDual Antenna Frontend 76 GHz to 81 GHz加入詢價
R&S®AREG-B181SSingle Antenna Frontend 76 GHz to 81 GHz加入詢價
R&S®AREG-K799Doppler frequency shift for generating a common radial velocity for all objects加入詢價
R&S®AREG-B60Doppler frequency shift for generating an individual radial velocity for each object加入詢價
R&S®AREG-B61Short fixed object distance, 3.2 m + air gap加入詢價
R&S®AREG-B62Fixed object distance, customer defined加入詢價
R&S®AREG-B17Analog IF input and output interfaces加入詢價
R&S®AREG-B86GPIB/USB Remote Control Interface加入詢價
