Network Analyzers

The Rohde & Schwarz vector network analyzer portfolio. Precise, fast, versatile.

Vector network analysis (VNA) is one of the most essential RF and microwave measurement approaches.

Rohde & Schwarz offers a wide range of versatile, high-performance network analyzers up to 1.1 THz and standard multiport solutions up to 48 ports. A Rohde & Schwarz vector network analyzer is the perfect tool for analyzing passive and active components such as filters, amplifiers, mixers and multiport modules.

The network analyzers feature excellent RF characteristics and a wide variety of analysis functions that help the user evaluate important parameters at a glance.

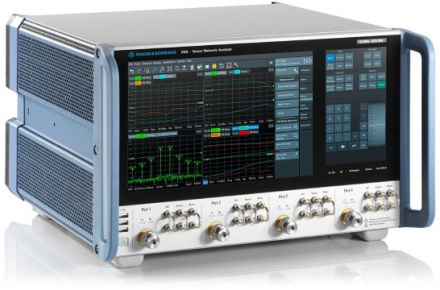

R&S®ZNA vector network analyzers
R&S®ZNA vector network analyzers
●10 MHz to 26.5/43.5/50/67 GHz (R&S®ZNA26/43/50/67)
●Two or four port models available
●Excellent RF-performance
●Up to four integrated sources
●Unique and intuitive touch-only operation
更多型號規格
型號規格描述加入詢價
R&S®ZNA26Ports 2 ports
Frequency 10 MHz to 26.5 GHz
Connectors 3.5 mm(m)
加入詢價
R&S®ZNA26Ports 4 ports
Frequency 10 MHz to 26.5 GHz
Connectors 3.5 mm(m)
加入詢價
R&S®ZNA43Ports 2 ports
Frequency 10 MHz to 43.5 GHz
Connectors 2.92 mm(m)
加入詢價
R&S®ZNA43Ports 2 ports
Frequency 10 MHz to 43.5 GHz
Connectors 2.4 mm(m)
加入詢價
R&S®ZNA43Ports 4 ports
Frequency 10 MHz to 43.5 GHz
Connectors 2.92 mm(m)
加入詢價
R&S®ZNA43Ports 4 ports
Frequency 10 MHz to 43.5 GHz
Connectors 2.4 mm(m)
加入詢價
R&S®ZNA50Ports 2 ports
Frequency 10 MHz to 50 GHz
Connectors 2.4 mm(m)
加入詢價
R&S®ZNA50Ports 4 ports
Frequency 10 MHz to 50 GHz
Connectors 2.4 mm(m)
加入詢價
R&S®ZNA67Ports 2 ports
Frequency 10 MHz to 67 GHz
Connectors 1.85 mm(m)
加入詢價
R&S®ZNA67Ports 4 ports
Frequency 10 MHz to 67 GHz
Connectors 1.85 mm(m)
加入詢價
R&S®ZVA vector network analyzer
Continuous sweep up to 110 GHz
R&S®ZVA vector network analyzer
●System frequency range: 10 MHz to 110 GHz
●Dynamic range up to 130 dB (typ)
●Two test ports, 1.0 mm male
●Base unit R&S®ZVA67 usable as stand alone box
更多型號規格
型號規格描述加入詢價
R&S®ZVA110Ports 2
Frequency 110GHz
1.00mm(m)
Connectors
加入詢價
R&S®ZVA110 w/o RF cablesPorts 2
Frequency 110GHz
1.00mm(m)
加入詢價
R&S®ZVA110 High Power ModelPorts 2
Frequency 110GHz
1.00mm(m)
加入詢價
R&S®ZVA110 High Power Model w/o RF cablesPorts 2
Frequency 110GHz
1.00mm(m)
加入詢價

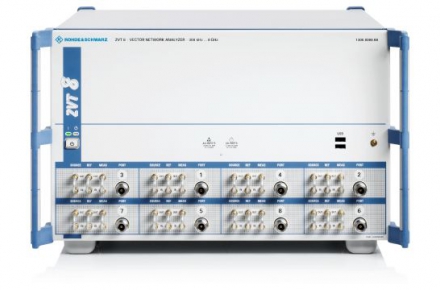

R&S®ZVT vector network analyzers
Frequency ranges from 300 kHz to 20 GHz, with up to eight test ports
R&S®ZVT vector network analyzers
●Multiport measurements, avoiding any time loss due to matrix control
●Flexible configuration for balanced and singe-ended measurements
●True differential measurements and coherent signal generation
●Enhanced performance by parallel measurements on several DUTs
●Multichannel receiver with simultaneous sampling (phased array antennas)
更多型號規格
型號規格描述加入詢價
R&S®ZVT8Ports 8
Frequency 8GHz
Connectors N(f)
加入詢價
R&S®ZVT20Ports 6
Frequency 20GHz
Connectors 3.5mm(m)
加入詢價
R&S®ZNBT Vector network analyzer
True multiport VNA
R&S®ZNBT Vector network analyzer
●Frequency range: 9 kHz to 8.5 GHz or 100 kHz to 20/26.5/40 GHz
●Up to 24 ports with fully phase coherent receivers
●Dynamic range of up to 140 dB
●Short sweep times of 1.7 ms (R&S®ZNBT8) and 2.7 ms (other models)
●3 year warranty extension
更多型號規格
型號規格描述加入詢價
R&S®ZNBT8Ports 4 to 24
Frequency 9 kHz to 8.5 GHz
Connectors N(f)
加入詢價
R&S®ZNBT20Ports 8 to 24
Frequency 100 kHz to 20 GHz
Connectors 3.5mm (m)
加入詢價
R&S®ZNBT26Ports 8 to 24
Frequency 100 kHz to 26.5 GHz
Connectors 2.92mm (m)
加入詢價
R&S®ZNBT40Ports 8 to 24
Frequency 100 kHz to 40 GHz
Connectors 2.92mm (m)
加入詢價

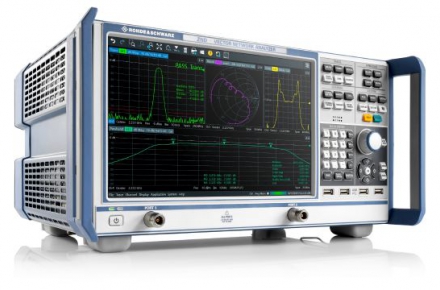

R&S®ZNB vector network analyzer
Leading in speed, dynamic range and ease of operation.
R&S®ZNB vector network analyzer
●Frequency range from 9 kHz up to 40 GHz
●2 or 4 ports
●Wide dynamic range of up to 140 dB
●Short sweep times, e.g. 4 ms for 401 points
●Wide power sweep range of 98 dB
更多型號規格
型號規格描述加入詢價
R&S®ZNB4 -NewPorts 2
Frequency 4.5 GHz
Connectors N (f)
加入詢價
R&S®ZNB4 -NewPorts 4
Frequency 4.5 GHz
Connectors N (f)
加入詢價
R&S®ZNB8 -NewPorts 2
Frequency 8 GHz
Connectors N (f)
加入詢價
R&S®ZNB8 -NewPorts 4
Frequency 8 GHz
Connectors N (f)
加入詢價
R&S®ZNB20 -NewPorts 2
Frequency 20 GHz
Connectors 3.5 mm (m)
加入詢價
R&S®ZNB20 -NewPorts 4
Frequency 20 GHz
Connectors 3.5 mm (m)
加入詢價
R&S®ZNB40-high out. powerPorts 2
Frequency 40 GHz
Connectors 2.92 mm (m)
加入詢價
R&S®ZNB40Ports 2
Frequency 40 GHz
Connectors 2.92 mm (m)
加入詢價
R&S®ZNB40Ports 4
Frequency 40 GHz
Connectors 2.92 mm (m)
加入詢價
R&S®ZND vector network analyzers
Basic, solid performance network analysis
R&S®ZND vector network analyzers
●100 kHz to 4.5 GHz unidirectional 2 port VNA
●Frequency range can be extended to 8.5 GHz
●Test set can be expanded for bidirectional measurements
●Simple touchscreen operation
●Solid RF performance
更多型號規格
型號規格描述加入詢價
R&S®ZNDPorts .2
Frequency 8.5GHz
Connectors N(f)
加入詢價

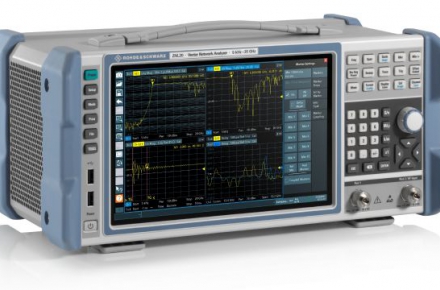

R&S®ZNL vector network analyzer
R&S®ZNL vector network analyzer
●Wide frequency range from 5 kHz up to 20 GHz
●Optional spectrum analysis and power sensor support up to 6 GHz
●CW signal generator spectrum analysis option
●Cost-efficient, portable (battery-powered option), precise, versatile
更多型號規格
型號規格描述加入詢價
R&S®ZNL3Ports 2
Frequency 3 GHz
Connectors n(f)
加入詢價
R&S®ZNL4Ports 2
Frequency 4.5 GHz
Connectors n(f)
加入詢價
R&S®ZNL6Ports 2
Frequency 6 GHz
Connectors n(f)
加入詢價
R&S®ZNL14Ports 2
Frequency 14 GHz
Connectors n(f)
加入詢價
R&S®ZNL20Ports 2
Frequency 20 GHz
Connectors 3.5mm (m)
加入詢價

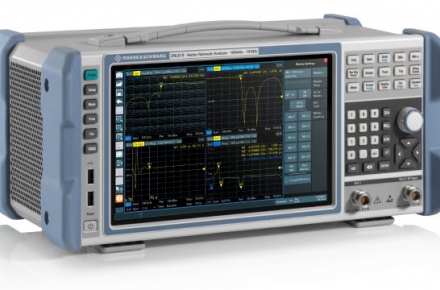

R&S®ZNLE vector network analyzer
R&S®ZNLE vector network analyzer
●Broad frequency range: from 100 kHz up to 20 GHz
●Ideal for production and education
●Intuitive to configure and use
●Excellent performance and cost-efficient
更多型號規格
型號規格描述加入詢價
R&S®ZNLE3Ports 2
Frequency 3 GHz
Connectors N (f)
加入詢價
R&S®ZNLE4Ports 2
Frequency 4.5 GHz
Connectors N (f)
加入詢價
R&S®ZNLE6Ports 2
Frequency 6 GHz
Connectors N (f)
加入詢價
R&S®ZNLE14Ports 2
Frequency 14 GHz
Connectors N (f)
加入詢價
R&S®ZNL18Ports 2
Frequency 18 GHz (20 GHz overrange)
Connectors N (f)
加入詢價

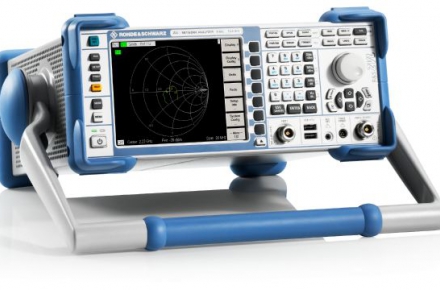

R&S®ZVL vector network analyzer
R&S®ZVL vector network analyzer
●Optional spectrum analysis and digital communications standards
●Bidirectional test set for displaying all four S-parameters
●Cost-efficient, portable, preicse
更多型號規格
型號規格描述加入詢價
R&S®ZVL13Ports 2
Frequency 13.6GHz
Connectors N(f)
加入詢價

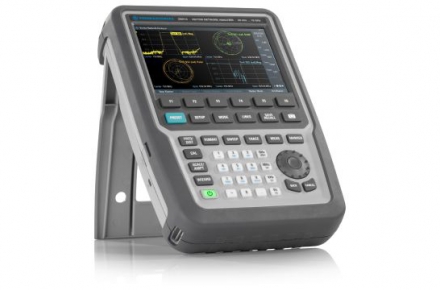

R&S®ZNH handheld vector network analyzer
Low in complexity, high in precision
R&S®ZNH handheld vector network analyzer
● Frequency range from 30 kHz to 4/8/18/26.5 GHz
● One-port cable and antenna measurement with basic instrument
● S-parameter (S11, S12, S21, S22) measurement with basic instrument
● 100 dB (typ.) dynamic range for filter and antenna isolation measurements
● Non-reflective display, small form factor, ruggedized housing (IP51)
更多型號規格
型號規格描述加入詢價
R&S®ZNH4Ports 2
Frequency 4GHz
Connectors N
加入詢價
R&S®ZNH8Ports 2
Frequency 8GHz
Connectors N
加入詢價
R&S®ZNH18Ports 2
Frequency 18 GHz
Connectors N
加入詢價
R&S®ZNH26Ports 2
Frequency 2.65 GHz
Connectors PC 3.5mm
加入詢價
