測試與量測

Broadcast analyzers

Optimize your signals and find even the smallest deviations.

Our product portfolio offers dedicated instruments for various terrestrial and cable TV and radio standards. For satellite applications, special options are available for our spectrum analyzers.

R&S®ETL TV Analyzer
The universal reference receiver for broadcast signal analysis
R&S®ETL TV Analyzer
● Realtime demodulation
● Advanced frontend and FPGA-based demodulation
● Preselection with additional 75 Ω RF input
● Integrated spectrum analyzer
● Video decoder for MPEG-2, H.264 (MPEG-4), HEVC and AVS/AVS+
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®ETL TV AnalyzerThe universal reference receiver for broadcast signal analysis加入詢價
不確定需求規格?立即點擊讓我們協助您 CLOSE
R&S®ETC compact TV analyzer
Economical TV transmitter testing
R&S®ETC compact TV analyzer
●Support of DVB-T2, DVB-T/DVB-H and ISDB-T digital TV standards
●Wide frequency range up to 3.6 GHz or 8 GHz
●Precision MER measurement in realtime (typ. 44 dB at 500 MHz)
●Wide input level range from –76 dBm to +10 dBm
●Spectrum analyzer DANL of typ. –165 dBm (1 Hz)
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®ETC100 kHz to 8.0 GHz加入詢價
不確定需求規格?立即點擊讓我們協助您 CLOSE
R&S®DSA DOCSIS signal analyzer
Best signal quality for maximum data throughput
R&S®DSA DOCSIS signal analyzer
●Demodulation and analysis of DOCSIS 3.0/3.1 and EuroDOCSIS 3.0 downstream and upstream signals in realtime
●Demodulation and analysis of digital TV signals (J.83/A/B/C, DVB-C) in realtime
●Residual MER ≥ 50 dB with DOCSIS 3.1
●Residual MER ≥ 56 dB with SC-QAM
●Dual receivers for downstream (47 MHz to 1794 MHz) and upstream (5 MHz to 204 MHz)
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®DSAFrequency range downstream 47 MHz to 1794 MHz
Frequency range upstream -		加入詢價
R&S®DSAFrequency range downstream 47 MHz to 1794 MHz
Frequency range upstream 5 MHz to 204 MHz		加入詢價
不確定需求規格?立即點擊讓我們協助您 CLOSE

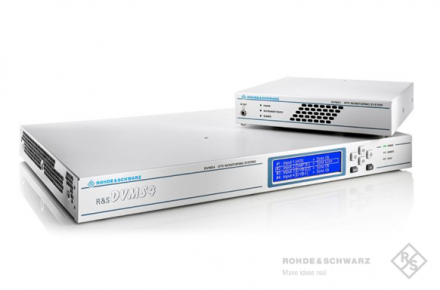

R&S®DVMS Digital TV Monitoring System Family
Ensuring high quality of digital TV network operation
R&S®DVMS Digital TV Monitoring System Family
●Simultaneous monitoring of up to four signals
●RF modules for DVB-T/DVB-T2 and DVB-S/DVB-S2
●IP module for electrical and optical (SFP) connections (TS over IP)
●Support for DVB, ATSC and ISDB-T/ISDB-TB transport streams
●T2-MI and BTS support
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®DVMS1Number of module slots 1.0
Maximum number of simultaneously monitored inputs 4 (1 × TS and/or 1 × RF or 4 × TS IP)
Signal interfaces integrated in base unit -
Total maximum input bit rates across all inputs 360 Mbit/s (IP), 86 Mbit/s (ASI + RF)
Widt h½ rack		加入詢價
R&S®DVMS4Number of module slots 4.0
Maximum number of simultaneously monitored inputs 4 (TS, RF and TS IP in any combination)
Signal interfaces integrated in base unit 4 × TS (ASI)
Total maximum input bit rates across all inputs 360 Mbit/s (IP + ASI + RF)
Integrated display
Widt h1 rack		加入詢價
不確定需求規格?立即點擊讓我們協助您 CLOSE
R&S®DVMS Digital TV Monitoring System Family
Ensuring high quality of digital TV network operation
R&S®DVMS Digital TV Monitoring System Family
●Simultaneous monitoring of up to four signals
●RF modules for DVB-T/DVB-T2 and DVB-S/DVB-S2
●IP module for electrical and optical (SFP) connections (TS over IP)
●Support for DVB, ATSC and ISDB-T/ISDB-TB transport streams
●T2-MI and BTS support
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®DVMS1Number of module slots 1.0
Maximum number of simultaneously monitored inputs 4 (1 × TS and/or 1 × RF or 4 × TS IP)
Total maximum input bit rates across all inputs 360 Mbit/s (IP), 86 Mbit/s (ASI + RF)
Width½ rack		加入詢價
R&S®DVMS4Number of module slots 4.0
Maximum number of simultaneously monitored inputs 4 (TS, RF and TS IP in any combination)
Signal interfaces integrated in base unit 4 × TS (ASI)
Total maximum input bit rates across all inputs 360 Mbit/s (IP + ASI + RF)
Integrated display ✓
Width 1 rack		加入詢價
