R&S Broadband Amplifiers

RF performance that inspires.

R&S broadband amplifiers are innovative solid-state solutions with exceptional RF performance for generating RF power up to 13 kW in the frequency range of 4 kHz to 6 GHz. Designed as very compact amplifiers, at highest power density, they are robust against severest output mismatch while featuring high availability. Applications range from amplitude, frequency, phase, pulse to OFDM modulation. Its modular structure allows for fieldproven scalability of systems. Sophisticated switching options for input, output and sample ports will match your needs when it comes to even complex RF systems set-ups.

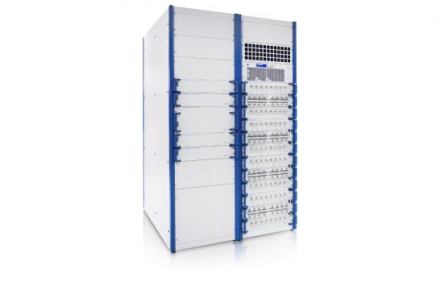

R&S®BBL200 broadband amplifier
The quiet amplifier with 10 kW HF output power and smallest footprint
R&S®BBL200 broadband amplifier
●Frequency range between 9 kHz and 250 MHz
●Output power of 3000 W, 5000 W or 10000 W at 1 dB compression point
●100 % mismatch tolerance
●Suitable for amplitude, frequency, phase, pulse and OFDM modulation
●Liquid-cooled, compact and quiet
詳細規格

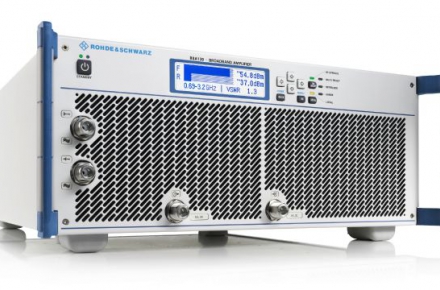

R&S®BBA130 broadband amplifier (Single-band amplifier)
The first tunable amplifier for a wide range of applications
R&S®BBA130 broadband amplifier (Single-band amplifier)
●Frequency range between 80 MHz and 6 GHz
●Output power between 22 W and 13000 W
●Adjustable in bias point and mismatch tolerance
●Suitable for amplitude, frequency, phase, pulse and OFDM modulation
●Flexibly scalable and upgradable in frequency and power
詳細規格
R&S®BBA130 broadband amplifier (Twin-band amplifier)
The first tunable amplifier for a wide range of applications
R&S®BBA130 broadband amplifier (Twin-band amplifier)
●Frequency range between 80 MHz and 6 GHz
●Output power between 22 W and 13000 W
●Adjustable in bias point and mismatch tolerance
●Suitable for amplitude, frequency, phase, pulse and OFDM modulation
●Flexibly scalable and upgradable in frequency and power
詳細規格
R&S®BBA130 broadband amplifier (Dual-band amplifier)
The first tunable amplifier for a wide range of applications
R&S®BBA130 broadband amplifier (Dual-band amplifier)
●Frequency range between 80 MHz and 6 GHz
●Output power between 22 W and 13000 W
●Adjustable in bias point and mismatch tolerance
●Suitable for amplitude, frequency, phase, pulse and OFDM modulation
●Flexibly scalable and upgradable in frequency and power
詳細規格
R&S®BBA150 broadband amplifier (Single-band amplifier)
An excellent EMC specialist from 4 kHz to 6 GHz with high power density
R&S®BBA150 broadband amplifier (Single-band amplifier)
●Frequency range between 4 kHz and 6 GHz
●Output power between 15 W and 3000 W at 1dB compression point
●100 % mismatch tolerance
●Suitable for amplitude, frequency, phase, pulse and OFDM modulation
●Extensive switching options for flexible system configurations
詳細規格
R&S®BBA150 broadband amplifier (Twin-band amplifier)
An excellent EMC specialist from 4 kHz to 6 GHz with high power density
R&S®BBA150 broadband amplifier (Twin-band amplifier)
●Frequency range between 4 kHz and 6 GHz
●Output power between 15 W and 3000 W at 1dB compression point
●100 % mismatch tolerance
●Suitable for amplitude, frequency, phase, pulse and OFDM modulation
●Extensive switching options for flexible system configurations
詳細規格
R&S®BBA150 broadband amplifier (Dual-band amplifier)
An excellent EMC specialist from 4 kHz to 6 GHz with high power density
R&S®BBA150 broadband amplifier (Dual-band amplifier)
●Frequency range between 4 kHz and 6 GHz
●Output power between 15 W and 3000 W at 1dB compression point
●100 % mismatch tolerance
●Suitable for amplitude, frequency, phase, pulse and OFDM modulation
●Extensive switching options for flexible system configurations
詳細規格
