The additional equipment you need to complete your EMC test setup

Complete your EMC test setup with the essential accessories to compliment the test equipment. Whether it is a LISN (or V-Network) to counteract interference from external power sources on conducted emissions from the device under test, probes to locate the near field sources of radiated emissions, receive and transmit antennas, or tripods for holding antennas in place, the Rohde & Schwarz catalog of EMC accessories provides the additional items you need for EMI and EMS measurements, guaranteed 100% suitable for use with Rohde & Schwarz EMC test equipment.

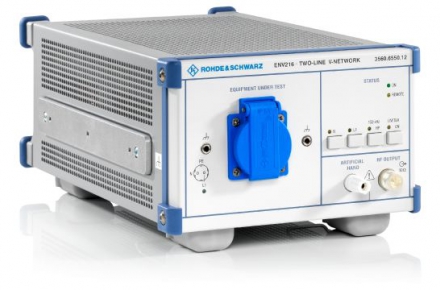

R&S®ENV216 two-line V-network
For disturbance voltage measurements on single-phase EUT
R&S®ENV216 two-line V-network
●Frequency range 9 kHz to 30 MHz
●Power handling capacity up to 16 A (country-specific)
●Simulated impedance (50 μH + 5 Ω) || 50 Ω in line with CISPR 16-1-2
●V-network in line with CISPR, EN, VDE, ANSI, FCC Part 15 and MIL-STD-461
●Calibrated in line with CISPR 16-1-2
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®ENV216Max. continuous current 16A
Country specific plug Germany, Austria, Finland, the Netherlands, Norway, Russia, Sweden, Korea; occasionally: Portugal, Spain		加入詢價
R&S®ENV216Max. continuous current 13A
Country specific plug UK, Ireland, Hong Kong, Malaysia, Singapore		加入詢價
R&S®ENV216Max. continuous current 16A
Country specific plug France, Belgium and Czech Republic		加入詢價
R&S®ENV216Max. continuous current 10A
Country specific plug China, Australia, New Zealand		加入詢價
R&S®ENV216Max. continuous current 15A
Country specific plug USA, Canada, Japan, Taiwan, Mexico, Central America		加入詢價
不確定需求規格?立即點擊讓我們協助您 CLOSE

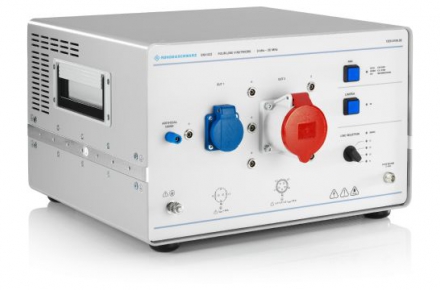

R&S®ENV432 four-line V-network
For disturbance voltage measurements on three-phase EUTs
R&S®ENV432 four-line V-network
●Frequency range 9 kHz to 30 MHz
●Power handling capacity up to 32 A, constant current
●Simulated impedance (50 μH + 5 Ω) || 50 Ω in line with CISPR 16-1-2
●V-network in line with CISPR, EN, VDE, ANSI, FCC Part 15 and MIL-STD-461
●Calibrated in line with CISPR 16-1-2
詳細規格

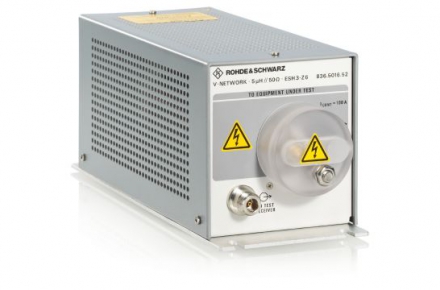

R&S®ESH3-Z6 single-line V-network
For measuring disturbance voltage in low-impedance supply networks
R&S®ESH3-Z6 single-line V-network
●Frequency range 0.1 MHz to 200 MHz
●Power handling capacity up to 100 A, continuous current
●Simulated impedance 5 μH || 50 Ω in line with CISPR 25
●Calibrated in line with CISPR 25:2016 (Edition 4)
詳細規格

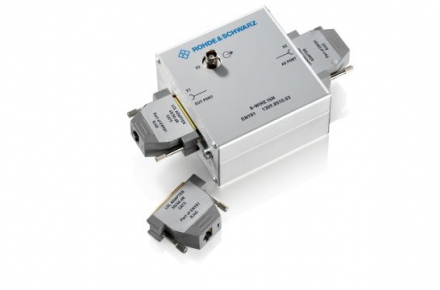

R&S®ENY81 coupling network
For measuring asymmetrical (common mode) disturbance voltage
R&S®ENY81 coupling network
●Eight-wire network
●In line with CISPR 22:2008 and CISPR 32
●Compliance with CISPR 16-1-2
●Adapter sets to meet standardized LCL requirements (55 dB and 65 dB)
●High transmission bandwidth for wanted signal (100 MHz)
詳細規格

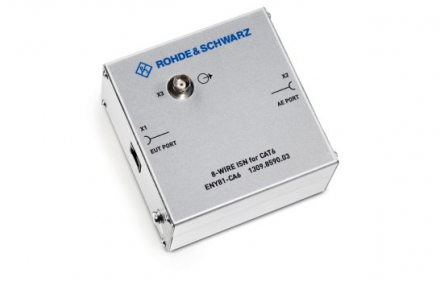

R&S®ENY81-CA6 coupling network
For measurement of asymmetrical (common mode) disturbance voltage
R&S®ENY81-CA6 coupling network
●Eight-wire network
●In line with CISPR 22:2008 and CISPR 32
●Compliance with CISPR 16-1-2
●75 dB longitudinal conversion loss (LCL)
●High transmission bandwidth for wanted signal (250 MHz)
詳細規格

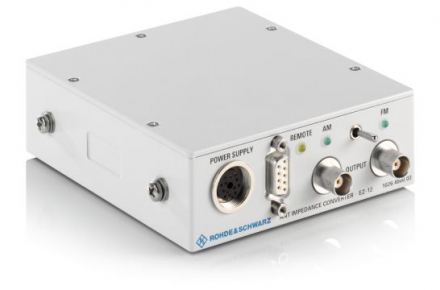

R&S®EZ-12 Antenna impedance converter
For disturbance voltage measurements
R&S®EZ-12 Antenna impedance converter
●Frequency range 150 kHz to 30 MHz (120 MHz)
●Flat frequency response
●High sensitivity and overload capacity
●Remotely controlled FM range switch
●Calibrated in line with CISPR 25
詳細規格

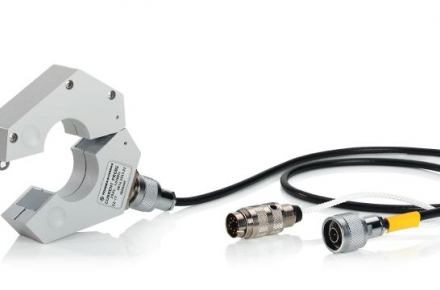

R&S®EZ-17 current probe
For disturbance current and current injection measurements
R&S®EZ-17 current probe
●Frequency range 20 Hz to 100 (200) MHz
●Large inner diameter of 30 mm
●Load capacity for DC and AC currents up to 300 A
●Simple clamping thanks to spring-loaded mechanism
●Calibrated in line with CISPR 16-1-2
詳細規格

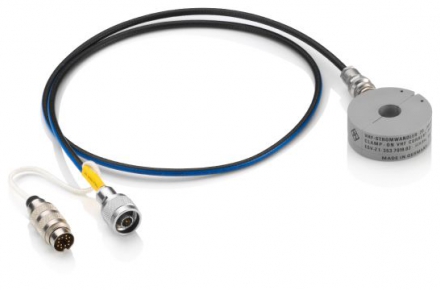

R&S®ESV-Z1 VHF current probe
For disturbance current measurements
R&S®ESV-Z1 VHF current probe
●Frequency range 9 kHz to 600 MHz
●Maximum diameter of conductor 13.5 mm (0.53 in)
●Maximum AC current 50 A
●Simple clamping thanks to spring-loaded mechanism
●Calibrated in line with CISPR 16-1-2
詳細規格

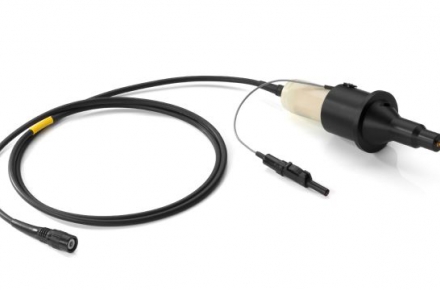

R&S®ESH2-Z3 passive voltage probe
For disturbance voltage measurements
R&S®ESH2-Z3 passive voltage probe
●Frequency range 9 kHz to 30 MHz
●Voltage division factor 30 dB
●Input impedance 1.5 kΩ ± 5 % || 8 pF
●Max. input voltage 250 V (f < 63 Hz); 30 V (f >= 63 Hz)
●Calibrated in line with CISPR 16-1-2
