Rohde & Schwarz Oscilloscopes

Oscilloscopes that fit your requirements and your budget, from top value to top performance

Oscilloscope innovation that delivers measurement confidence. Excellent signal fidelity, high acquisition rate, an innovative trigger system and a clever user interface - that’s what you get with Rohde & Schwarz, a leading manufacturer of oscilloscopes.

Match your needs with the right oscilloscope platform, probe solution and software applications. Rohde & Schwarz oscilloscope have outstanding features like e.g. digital trigger, deep memory, frequency response analysis (Bode plot), real-time de-embedding, fast update rates, and unique low noise.

From general purpose test to solutions for specific industry standards, we have you covered.

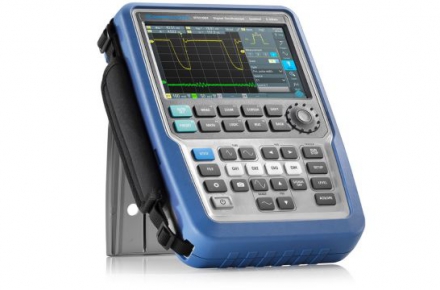

R&S®Scope Rider handheld oscilloscope
R&S®Scope Rider handheld oscilloscope
●Bandwidth: 60 MHz to 500 MHz
●Sample rate: up to 5 Gsample/s
●Memory depth: up to 500 kpts, 50 Mpts segmented memory
●ADC resolution: 10-bit
●Isolated channels (CAT IV 600 V (RMS) / CAT III 1000 V (RMS))
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®RTH1002Bandwidth 60 MHz
Channels 2
Sample rate 5 Gsample/s
Max. memory depth 500 kpts
Optional MSO 8 digital channels		加入詢價
R&S®RTH1004Bandwidth 60 MHz
Channels 4
Sample rate 5 Gsample/s
Max. memory depth 500 kpts
Optional MSO 8 digital channels		加入詢價
R&S®RTH1002 + RTH-B221Bandwidth 100 MHz
Channels 2
Sample rate 5 Gsample/s
Max. memory depth 500 kpts
Optional MSO 8 digital channels		加入詢價
R&S®RTH1004 + RTH-B241Bandwidth 100 MHz
Channels 4
Sample rate 5 Gsample/s
Max. memory depth 500 kpts
Optional MSO 8 digital channels		加入詢價
R&S®RTH1002 + RTH-B222Bandwidth 200 MHz
Channels 2
Sample rate 5 Gsample/s
Max. memory depth 500 kpts
Optional MSO 8 digital channels		加入詢價
R&S®RTH1004 + RTH-B242Bandwidth 200 MHz
Channels 4
Sample rate 5 Gsample/s
Max. memory depth 500 kpts
Optional MSO 8 digital channels		加入詢價
R&S®RTH1002 + RTH-B223Bandwidth 350 MHz
Channels 2
Sample rate 5 Gsample/s
Max. memory depth 500 kpts
Optional MSO 8 digital channels		加入詢價
R&S®RTH1004 + RTH-B243Bandwidth 350 MHz
Channels 4
Sample rate 5 Gsample/s
Max. memory depth 500 kpts
Optional MSO 8 digital channels		加入詢價
R&S®RTH1002 + RTH-B224Bandwidth 500 MHz
Channels 2
Sample rate 5 Gsample/s
Max. memory depth 500 kpts
Optional MSO 8 digital channels		加入詢價
R&S®RTH1004 + RTH-B244Bandwidth 500 MHz
Channels 4
Sample rate 5 Gsample/s
Max. memory depth 500 kpts
Optional MSO 8 digital channels		加入詢價
不確定需求規格?立即點擊讓我們協助您 CLOSE

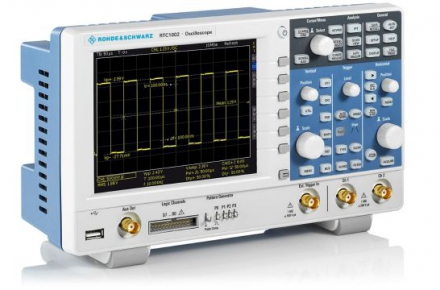

R&S®RTC1000 oscilloscope
R&S®RTC1000 oscilloscope
●Bandwidth: 50 MHz to 300 MHz
●Max. sample rate: 2 Gsample/s
●Max. memory depth: 2 Msample
●MSO: 8 digital channels, optional, retrofittable
●Pattern generator: 4-bit patterns up to 50 Mbit/s
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®RTC1002Bandwidth 50 MHz
Channels 2
Sample rate 2 Gsample
Max. memory depth 2 Mpts
Optional MSO 8 digital channels		加入詢價
R&S®RTC1002 + RTC-B220Bandwidth 70 MHz
Channels 2
Sample rate 2 Gsample
Max. memory depth 2 Mpts
Optional MSO 8 digital channels		加入詢價
R&S®RTC1002 + RTC-B221Bandwidth 100 MHz
Channels 2
Sample rate 2 Gsample
Max. memory depth 2 Mpts
Optional MSO 8 digital channels		加入詢價
R&S®RTC1002 + RTC-B222Bandwidth 200 MHz
Channels 2
Sample rate 2 Gsample
Max. memory depth 2 Mpts
Optional MSO 8 digital channels		加入詢價
R&S®RTC1002 + RTC-B223Bandwidth 300 MHz
Channels 2
Sample rate 2 Gsample
Max. memory depth 2 Mpts
Optional MSO 8 digital channels		加入詢價
不確定需求規格?立即點擊讓我們協助您 CLOSE

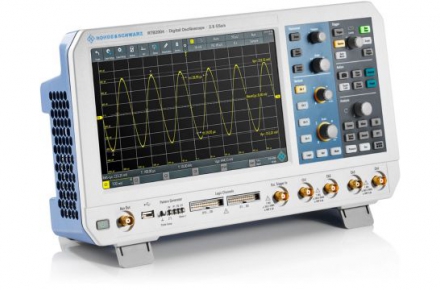

R&S®RTB2000 oscilloscope
R&S®RTB2000 oscilloscope
Bandwidth: 70 MHz to 300 MHz
Sample rate: up to 2.5 Gsample/s
Memory depth: up to 20 Msample
ADC resolution: 10 bit
Display: 10.1" capacitive touchscreen
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®RTB2002Bandwidth 70 MHz
Channels 2
Sample rate 2.5 Gsample/s
Max. memory depth 20 Mpts
Optional MSO 16 digital channels		加入詢價
R&S®RTB2004Bandwidth 70 MHz
Channels 4
Sample rate 2.5 Gsample/s
Max. memory depth 20 Mpts
Optional MSO 16 digital channels		加入詢價
R&S®RTB2002 + RTB-B221Bandwidth 100 MHz
Channels 2
Sample rate 2.5 Gsample/s
Max. memory depth 20 Mpts
Optional MSO 16 digital channels		加入詢價
R&S®RTB2004 + RTB-B241Bandwidth 100 MHz
Channels 4
Sample rate 2.5 Gsample/s
Max. memory depth 20 Mpts
Optional MSO 16 digital channels		加入詢價
R&S®RTB2002 + RTB-B222Bandwidth 200 MHz
Channels 2
Sample rate 2.5 Gsample/s
Max. memory depth 20 Mpts
Optional MSO 16 digital channels		加入詢價
R&S®RTB2004 + RTB-B242Bandwidth 200 MHz
Channels 4
Sample rate 2.5 Gsample/s
Max. memory depth 20 Mpts
Optional MSO 16 digital channels		加入詢價
R&S®RTB2002 + RTB-B223Bandwidth 300 MHz
Channels 2
Sample rate 2.5 Gsample/s
Max. memory depth 20 Mpts
Optional MSO 16 digital channels		加入詢價
R&S®RTB2004 + RTB-B243Bandwidth 300 MHz
Channels 4
Sample rate 2.5 Gsample/s
Max. memory depth 20 Mpts
Optional MSO 16 digital channels		加入詢價
不確定需求規格?立即點擊讓我們協助您 CLOSE

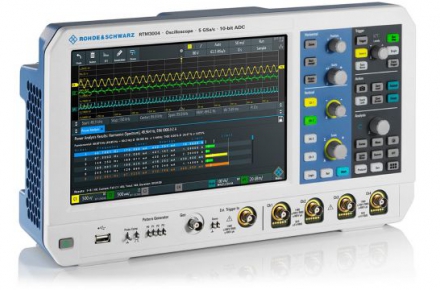

R&S®RTM3000 oscilloscope
R&S®RTM3000 oscilloscope
●Bandwidth: 100 MHz to 1GHz
●Sample rate: up to 5 Gsample/s
●Memory depth: up to 80 Msample
●ADC resolution: 10-bit
●Display: 10.1’’ capacitive touchscree
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®RTM3002Bandwidth 100 MHz
Channels 2
Sample rate 5 Gsample/s
Max. memory depth80 Mpts
Optional MSO 16 digital channels		加入詢價
R&S®RTM3004Bandwidth 100 MHz
Channels 4
Sample rate 5 Gsample/s
Max. memory depth80 Mpts
Optional MSO 16 digital channels		加入詢價
R&S®RTM3002 + RTM-B222Bandwidth 200 MHz
Channels 2
Sample rate 5 Gsample/s
Max. memory depth80 Mpts
Optional MSO 16 digital channels		加入詢價
R&S®RTM3004 + RTM-B242Bandwidth 200 MHz
Channels 4
Sample rate 5 Gsample/s
Max. memory depth80 Mpts
Optional MSO 16 digital channels		加入詢價
R&S®RTM3002 + RTM-B223Bandwidth 350 MHz
Channels 2
Sample rate 5 Gsample/s
Max. memory depth80 Mpts
Optional MSO 16 digital channels		加入詢價
R&S®RTM3004 + RTM-B243Bandwidth 350 MHz
Channels 4
Sample rate 5 Gsample/s
Max. memory depth80 Mpts
Optional MSO 16 digital channels		加入詢價
R&S®RTM3002 + RTM-B225Bandwidth 500 MHz
Channels 2
Sample rate 5 Gsample/s
Max. memory depth80 Mpts
Optional MSO 16 digital channels		加入詢價
R&S®RTM3004 + RTM-B245Bandwidth 500 MHz
Channels 4
Sample rate 5 Gsample/s
Max. memory depth80 Mpts
Optional MSO 16 digital channels		加入詢價
R&S®RTM3002 + RTM-B2210Bandwidth 1 GHz
Channels 2
Sample rate 5 Gsample/s
Max. memory depth80 Mpts
Optional MSO 16 digital channels		加入詢價
R&S®RTM3004 + RTM-B2410Bandwidth 1 GHz
Channels 4
Sample rate 5 Gsample/s
Max. memory depth80 Mpts
Optional MSO 16 digital channels		加入詢價
不確定需求規格?立即點擊讓我們協助您 CLOSE

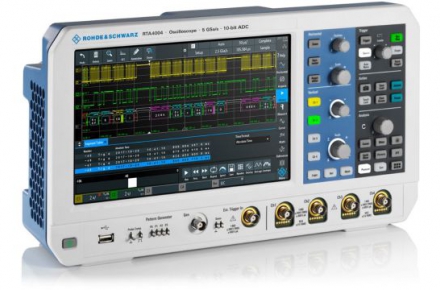

R&S®RTA4000 oscilloscope
R&S®RTA4000 oscilloscope
●Bandwidth: 200 MHz to 1 GHz
●Sample rate: up to 5 Gsample/s
●Memory depth: up to 1 Gsample
●ADC resolution: 10-bit
●Display: 10.1’’ capacitive touchscreen
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®RTA4004Bandwidth 200 MHz
Channels 4
Sample rate 5 Gsample/s
Max. memory depth 200 Mpts
Optional MSO 16 digital channels		加入詢價
R&S®RTA4004 + RTA-B243Bandwidth 350 MHz
Channels 4
Sample rate 5 Gsample/s
Max. memory depth 200 Mpts
Optional MSO 16 digital channels		加入詢價
R&S®RTA4004 + RTA-B245Bandwidth 500 MHz
Channels 4
Sample rate 5 Gsample/s
Max. memory depth 200 Mpts
Optional MSO 16 digital channels		加入詢價
R&S®RTA4004 + RTA-B2410Bandwidth 1 GHz
Channels 4
Sample rate 5 Gsample/s
Max. memory depth 200 Mpts
Optional MSO 16 digital channels		加入詢價
不確定需求規格?立即點擊讓我們協助您 CLOSE

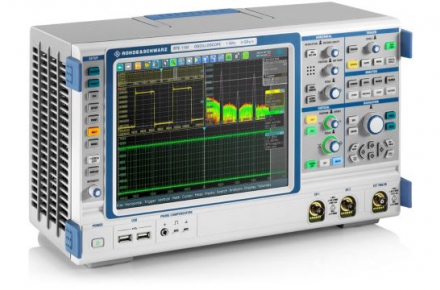

R&S®RTE1000 oscilloscope
R&S®RTE1000 oscilloscope
●Bandwidth: 200 MHz to 2 GHz
●Sample rate: 5 Gsample/s
●Max. memory depth: 200 Msample
●Vertical resolution: up to 16-bit
●MSO: 16 digital channels, optional, retrofittable
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®RTE1022Bandwidth 200 MHz
Channels 2
Sample rate 5 Gsample/s
Max. memory depth 200 Mpts
Optional MSO 16 digital channels		加入詢價
R&S®RTE1024Bandwidth 200 MHz
Channels 4
Sample rate 5 Gsample/s
Max. memory depth 200 Mpts
Optional MSO 16 digital channels		加入詢價
R&S®RTE1032Bandwidth 350 MHz
Channels 2
Sample rate 5 Gsample/s
Max. memory depth 200 Mpts
Optional MSO 16 digital channels		加入詢價
R&S®RTE1034Bandwidth 350 MHz
Channels 4
Sample rate 5 Gsample/s
Max. memory depth 200 Mpts
Optional MSO 16 digital channels		加入詢價
R&S®RTE1052Bandwidth 500 MHz
Channels 2
Sample rate 5 Gsample/s
Max. memory depth 200 Mpts
Optional MSO 16 digital channels		加入詢價
R&S®RTE1054Bandwidth 500 MHz
Channels 4
Sample rate 5 Gsample/s
Max. memory depth 200 Mpts
Optional MSO 16 digital channels		加入詢價
R&S®RTE1102Bandwidth 1 GHz
Channels 2
Sample rate 5 Gsample/s
Max. memory depth 200 Mpts
Optional MSO 16 digital channels		加入詢價
R&S®RTE1104Bandwidth 1 GHz
Channels 4
Sample rate 5 Gsample/s
Max. memory depth 200 Mpts
Optional MSO 16 digital channels		加入詢價
R&S®RTE1152Bandwidth 1.5 GHz
Channels 2
Sample rate 5 Gsample/s
Max. memory depth 200 Mpts
Optional MSO 16 digital channels		加入詢價
R&S®RTE1154Bandwidth 1.5 GHz
Channels 4
Sample rate 5 Gsample/s
Max. memory depth 200 Mpts
Optional MSO 16 digital channels		加入詢價
R&S®RTE1202Bandwidth 2 GHz
Channels 2
Sample rate 5 Gsample/s
Max. memory depth 200 Mpts
Optional MSO 16 digital channels		加入詢價
R&S®RTE1204Bandwidth 2 GHz
Channels 4
Sample rate 5 Gsample/s
Max. memory depth 200 Mpts
Optional MSO 16 digital channels		加入詢價
不確定需求規格?立即點擊讓我們協助您 CLOSE
R&S®RTO2000 oscilloscope
R&S®RTO2000 oscilloscope
●Bandwidth: 600 MHz to 6 GHz
●Max. sample rate: 20 Gsample/s
●Max. memory depth: 2 Gsample
●Up to 16-bit vertical resolution
●MSO: 16 digital channels, optional, retrofittable
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®RTO2002Bandwidth 600 MHz
Channels 2
Sample rate 10 Gsample/s
Max. memory depth 2 Gpts
Optional MSO 16 digital channels		加入詢價
R&S®RTO2004Bandwidth 600 MHz
Channels 4


Sample rate 10 Gsample/s
Max. memory depth 2 Gpts
Optional MSO 16 digital channels		加入詢價
R&S®RTO2012Bandwidth 1 GHz
Channels 2
Sample rate 10 Gsample/s
Max. memory depth 2 Gpts
Optional MSO 16 digital channels		加入詢價
R&S®RTO2014Bandwidth 1 GHz
Channels 4
Sample rate 10 Gsample/s
Max. memory depth 2 Gpts
Optional MSO 16 digital channels		加入詢價
R&S®RTO2022Bandwidth 2 GHz
Channels 2
Sample rate 10 Gsample/s
Max. memory depth 2 Gpts
Optional MSO 16 digital channels		加入詢價
R&S®RTO2024Bandwidth 2 GHz
Channels 4
Sample rate 10 Gsample/s
Max. memory depth 2 Gpts
Optional MSO 16 digital channels		加入詢價
R&S®RTO2032Bandwidth 3 GHz
Channels 2
Sample rate 10 Gsample/s
Max. memory depth 2 Gpts
Optional MSO 16 digital channels		加入詢價
R&S®RTO2034Bandwidth 3 GHz
Channels 4
Sample rate 10 Gsample/s
Max. memory depth 2 Gpts
Optional MSO 16 digital channels		加入詢價
R&S®RTO2044Bandwidth 4 GHz
Channels 4
Sample rate 10 Gsample/s
Max. memory depth 2 Gpts
Optional MSO 16 digital channels		加入詢價
R&S®RTO2064Bandwidth 6 GHz
Channels 4
Sample rate 10 Gsample/s
Max. memory depth 2 Gpts
Optional MSO 16 digital channels		加入詢價
不確定需求規格?立即點擊讓我們協助您 CLOSE

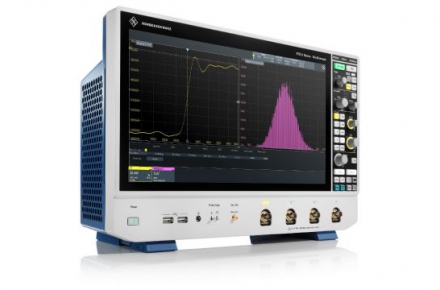

R&S®RTO6 oscilloscope
Instant insight meets in-depth information
R&S®RTO6 oscilloscope
●6 GHz maximum bandwidth
●1 million waveforms per second
●9.4 ENOB for ultimate signal integrity
●2 Gpoints maximum memory
●Exclusive frequency zone trigger
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®RTO64Bandwidth 600 MHz - 6 GHz
Channels 4
Sample rate up to 20 Gsample/s
Max. memory depth 2 Gpts
Optional MSO 16 digital channels		加入詢價
不確定需求規格?立即點擊讓我們協助您 CLOSE
R&S®RTP oscilloscope
R&S®RTP oscilloscope
●Bandwidth: 4 GHz to 16 GHz
●Max. sample rate: 40 Gsample/s
●Max. memory depth: 2 Gsample
●Realtime deembedding; Up to 16 bit resolution
●All trigger events at full bandwidth
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®RTP044Bandwidth 4 GHz
Channels 4
Sample rate 40 Gsample/s
Max. memory depth 2 Gpts
Optional MSO 16 digital channels		加入詢價
R&S®RTP064Bandwidth 6 GHz
Channels 4
Sample rate 40 Gsample/s
Max. memory depth 2 Gpts
Optional MSO 16 digital channels		加入詢價
R&S®RTP084Bandwidth 8 GHz
Channels 4
Sample rate 40 Gsample/s
Max. memory depth 2 Gpts
Optional MSO 16 digital channels		加入詢價
R&S®RTP134Bandwidth 13/8 GHz
Channels 2/4
Sample rate 40 Gsample/s
Max. memory depth 2 Gpts
Optional MSO 16 digital channels		加入詢價
R&S®RTP164Bandwidth 16/8 GHz
Channels 2/4
Sample rate 40 Gsample/s
Max. memory depth 2 Gpts
Optional MSO 16 digital channels		加入詢價
不確定需求規格?立即點擊讓我們協助您 CLOSE
