LCR meters

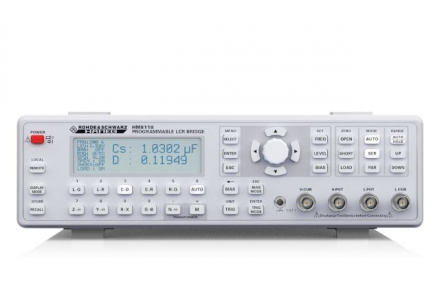

R&S®HM8118 LCR Bridge/Meter

●Basic accuracy: 0.05 %
●Up to 12 measurements per second
●Parallel and serial mode
●Internal programmable voltage and current bias
●Kelvin cable and four-terminal SMD test adapter included

詳細規格型號清單/詢價

更多型號規格

型號規格	描述	加入詢價
R&S®HM8118 LCR Bridge/Meter		加入詢價

不確定需求規格?立即點擊讓我們協助您 CLOSE

The top-class in component testing

R&S®LCX LCR meter

●Frequency range upgradeable to 10 MHz
●Basic accuracy of ±0.05 % for impedance measurements
●Basic accuracy of ±0.03° for phase measurements
●DC bias up to 40 V
●Data logging function

詳細規格型號清單/詢價

更多型號規格

型號規格	描述	加入詢價
R&S®LCX100	Measurement functions Cp, Cs, Lp, Ls, D, Q, G, Rp, Rs, Rdc, R, X, Z, Y, Θd, Θr, B, M, N Frequency range DC, 4 Hz to 300 kHz Test signal voltage (RMS) 100 mV to 10 V Test signal current 1 mA to 200 mA Internal bias voltage 0 V - 10 V	加入詢價
R&S®LCX200	Measurement functions Cp, Cs, Lp, Ls, D, Q, G, Rp, Rs, Rdc, R, X, Z, Y, Θd, Θr, B, M, N Frequency range DC, 4 Hz to 500 kHz (1 MHz or 10 MHz optional) Test signal voltage (RMS) ≤ 1 MHz: 100 mV to 10 V, ≤ 5 MHz: 100 mV to 2 V, > 5 MHz: 100 mV to 1 V Test signal current ≤ 1 MHz: 1 mA to 100 mA, > 1 MHz to ≤ 5 MHz: 1 mA to 20 mA, > 5 MHz: 1 mA to 10 mA Internal bias voltage 0 V - 10 V	加入詢價
