DC power supplies

DC Power supplies from Rohde & Schwarz

Designed for versatile applications

Rohde & Schwarz offers a versatile portfolio of DC Power supplies that fit variety of test and measurement scenarios. Whether you are looking to equip an educational lab or integrate a power supply into a production test system, we have the right equipment for you.

Choose between our basic bench models that come in compact design and offer modular capabilities or high-performance products that can easily power industrial labs.

Do you have any questions about particular model or need our help choosing a power supply that would fit your application needs? Feel free to get in touch with us!

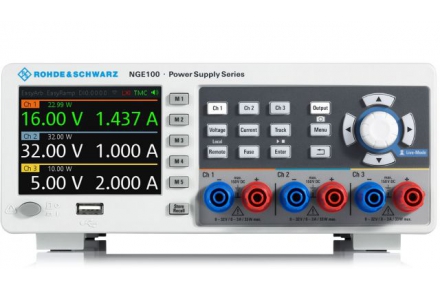

R&S®NGE100B power supply series
Reduced to the max
R&S®NGE100B power supply series
●R&S®NGE102B with two or R&S®NGE103B with three channels
●Max. output power of 66 W with R&S®NGE102B, 100 W with R&S®NGE103B
●Max. output voltage of 32 V per channel
●Electronic fuse (OCP), overvoltage (OVP)/ overpower (OPP)/ overtemperature protection (OTP)
●USB interface (VCP/TMC), optional LAN (LXI), optional wireless LAN, optional digital I/O (4bit)
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®NGE102BNumber of output channels 2
Max. output power 66W
Output voltage per channel 0 V to 32 V
Output current per channel 0 A to 3 A		加入詢價
R&S®NGE103BNumber of output channels 3
Max. output power 100W
Output voltage per channel 0 V to 32 V
Output current per channel 0 A to 3 A		加入詢價
不確定需求規格?立即點擊讓我們協助您 CLOSE

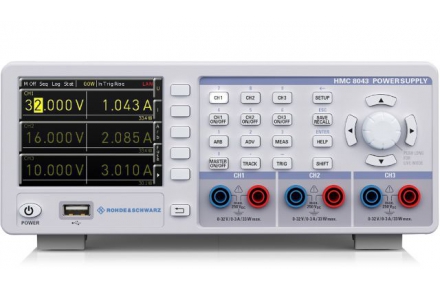

R&S®HMC804x DC power supply series
R&S®HMC804x DC power supply series
●Clear display of all measured parameters
●Galvanically isolated, floating and short-circuit proof outputs
●Protective functions adjustable for each channel
●Ideal power supply for hardware developers and labs
●Remote control
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®HMC8041Number of output channels 1
Max. output power 100 W
Output voltage per channel 0 V to 32 V
Output current per channel 10 A		加入詢價
R&S®HMC8041-GNumber of output channels 5
Max. output power 100 W
Output voltage per channel 0 V to 32 V
Output current per channel 10 A		加入詢價
R&S®HMC8042Number of output channels 2
Max. output power 100 W
Output voltage per channel 0 V to 32 V
Output current per channel 5 A		加入詢價
R&S®HMC8042-GNumber of output channels 2
Max. output power 100 W
Output voltage per channel 0 V to 32 V
Output current per channel 5 A		加入詢價
R&S®HMC8043Number of output channels 3
Max. output power 100 W
Output voltage per channel 0 V to 32 V
Output current per channel 3 A		加入詢價
R&S®HMC8043-GNumber of output channels 3
Max. output power 100 W
Output voltage per channel 0 V to 32 V
Output current per channel 3 A		加入詢價
不確定需求規格?立即點擊讓我們協助您 CLOSE

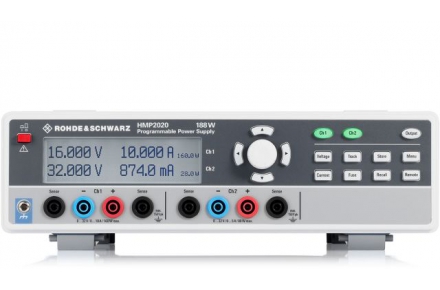

R&S®HMP2000 power supply series
R&S®HMP2000 power supply series
2 or 3 channels with max. 188 W total output power
Maximum output voltage of 32 V per channel
Maximum output power per channel: 80 W; except R&S®HMP2020 (CH1: 160 W)
Maximum output current per channel: 5 A; except R&S®HMP2020 (CH1: 10 A)
Electronic fuse (OCP), overvoltage protection (OVP), overtemperature protection (OTP)
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®HMP2020Number of output channels 2
Max. output power 188 W
Output voltage per channel 0 V to 32 V
Output current per channel channel 1: 10 A, channel 2: 5 A		加入詢價
R&S®HMP2030Number of output channels 3
Max. output power 188 W
Output voltage per channel 0 V to 32 V
Output current per channel 5 A		加入詢價
不確定需求規格?立即點擊讓我們協助您 CLOSE

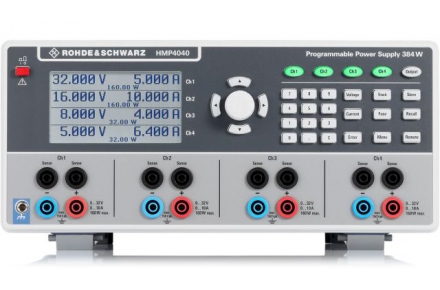

R&S®HMP4000 power supply series
R&S®HMP4000 power supply series
●3 or 4 channels with max. 384 W total output power
●Maximum output current per channel: 10 A
●Maximum output power per channel: 160 W
●Maximum output voltage of 32 V per channel; higher voltages possible in serial operation
●Electronic fuse (OCP), overvoltage protection (OVP), overtemperature protection (OTP)
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®HMP4030Number of output channels 3
Max. output power 384 W
Output voltage per channel 0 V to 32 V
Output current per channel 10 A		加入詢價
R&S®HMP4040Number of output channels 4
Max. output power 384 W
Output voltage per channel 0 V to 32 V
Output current per channel 10 A		加入詢價
不確定需求規格?立即點擊讓我們協助您 CLOSE

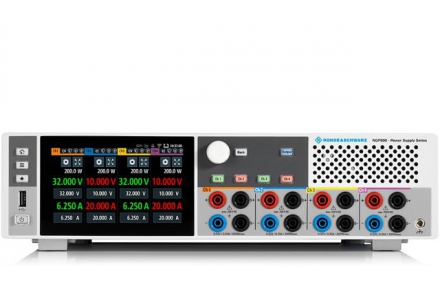

R&S®NGP800 power supply series
R&S®NGP800 power supply series
●Max. output power: 800 W
●Max. voltage per channel: 32 V or 64 V
●Max. current per channel: 10 A or 20 A
●Up to 250 V or 80 A in series or parallel operation
●Large touch display
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®NGP802Number of output channels 2
Max. output power 400 W
Output voltage per channel 0 V to 32 V
Output current per channel 0 A to 20 A		加入詢價
R&S®NGP804Number of output channels 4
Max. output power 800 W
Output voltage per channel 0 V to 32 V
Output current per channel 0 A to 20 A		加入詢價
R&S®NGP814Number of output channels 4
Max. output power 800 W
Output voltage per channel Ch 1, Ch 2: 0 V to 32 V Ch 3, Ch 4: 0 V to 64 V
Output current per channel Ch 1, Ch 2: 0 V to 32 V Ch 3, Ch 4: 0 V to 64 V		加入詢價
R&S®NGP822Number of output channels 2
Max. output power 400 W
Output voltage per channel 0 V to 64 V
Output current per channel 0 A to 10 A		加入詢價
R&S®NGP824Number of output channels 4
Max. output power 800 W
Output voltage per channel 0 V to 64 V
Output current per channel 0 A to 10 A		加入詢價
不確定需求規格?立即點擊讓我們協助您 CLOSE
R&S®NGL200 power supply series
R&S®NGL200 power supply series
●Max. output power: 120 W
●Voltage per channel: 0 V to 20 V
●Max. current per channel: 6 A
●Load recovery time: < 30 µs
●Ripple and noise: < 500 µV (RMS) / < 1 mA (RMS)
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®NGL201Number of output channels 1
Max. output power 60 W
Output voltage per channel 0 V to 20 V
Output current per channel ≤ 6 V: 0 A to 6 A > 6 V: 0 A to 3 A		加入詢價
R&S®NGL202Number of output channels 2
Max. output power 120 W
Output voltage per channel 0 V to 20 V
Output current per channel ≤ 6 V: 0 A to 6 A > 6 V: 0 A to 3 A		加入詢價
不確定需求規格?立即點擊讓我們協助您 CLOSE

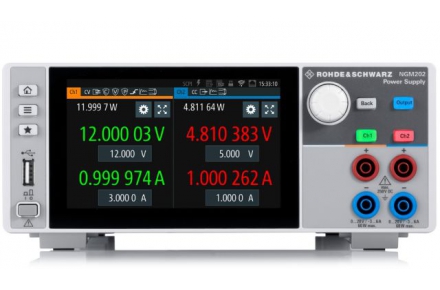

R&S®NGM200 power supply series
R&S®NGM200 power supply series
●Max. output power: 120 W
●Voltage per channel: 0 V to 20 V
●Max. current per channel: 6 A
●Resolutions down to 1 µV/10 nA
●500 ksample/s high-speed data logging
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®NGM201Number of output channels 1
Max. output power 60 W
Output voltage per channel 0 V to 20 V
Output current per channel ≤ 6 V: 0 A to 6 A > 6 V: 0 A to 3 A		加入詢價
R&S®NGM202Number of output channels 2
Max. output power 120 W
Output voltage per channel 0 V to 20 V
Output current per channel ≤ 6 V: 0 A to 6 A > 6 V: 0 A to 3 A		加入詢價
不確定需求規格?立即點擊讓我們協助您 CLOSE
R&S®NGA100 power supply series
R&S®NGA100 power supply series
●Max. output power: 80 W
●Max. voltage per channel: 35 V or 100 V
●Max. current per channel: 2 A or 6 A
●Up to 200 V in serial or 12 A in parallel mode with Channel Fusion
●Data acquisition with 10 sample/s
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®NGA101Number of output channels 1
Max. output power 40 W
Output voltage per channel 0 V to 35 V
Output current per channel 0 A to 6 A		加入詢價
R&S®NGA141Number of output channels 1
Max. output power 40 W
Output voltage per channel 0 V to 100 V
Output current per channel 0 A to 2 A		加入詢價
R&S®NGA102Number of output channels 2
Max. output power 80 W
Output voltage per channel 0 V to 35 V
Output current per channel 0 A to 6 A		加入詢價
R&S®NGA142Number of output channels 2
Max. output power 80 W
Output voltage per channel 0 V to 100 V
Output current per channel 0 A to 2 A		加入詢價
不確定需求規格?立即點擊讓我們協助您 CLOSE
R&S®NGU source measure units
A source measure unit from R&S Essentials
R&S®NGU source measure units
●Two/four quadrants: operates as source and sink
●High speed data acquisition (FastLog function)
●Voltage priority and current priority mode
●High-capacitance mode
●Intuitive, price-transparent online product configurator
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®NGU201Number of output channels 1
Max. output power 60 W
Output voltage per channel 0 V to 20 V
Output current per channel≤ 6 V: 8 A > 6 V: 3 A		加入詢價
R&S®NGU401Number of output channels 1
Max. output power 60 W
Output voltage per channel -20 V to +20 V
Output current per channel ≤ 6 V: ±8 A > 6 V: ±3 A		加入詢價
