TV transmitters

From the most powerful ones in the world to small intelligent gap fillers. Rohde & Schwarz TV transmitters ensure your transmission service quality.

Rohde & Schwarz TV transmitters feature outstanding efficiency, a compact design and minimal operational costs. With decades of experience in designing and producing quality transmitters, Rohde & Schwarz is the partner you can count on – now and in the future.

The best even better

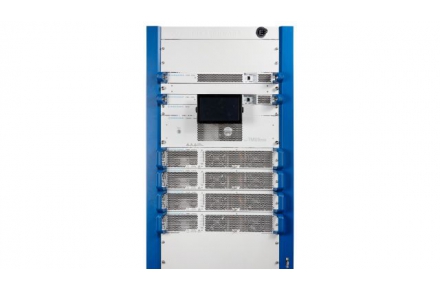

R&S®THU9evo liquid-cooled UHF transmitter family

●Even greater efficiency through many years of Doherty experience
●Highest power density on the market
●Built on the strengths of the established R&S®THU9 platform
●Adaptive efficiency optimization for minimized energy costs
●Future-ready ATSC 3.0 support

詳細規格型號清單/詢價

更多型號規格

型號規格	描述	加入詢價
R&S®THU9evo (1.5 kW - 17.5 kW)	Rack configuration 1 rack Number of amplifiers 1 - 12 Dimensions (H x W x D) 2000 mm x 600 mm x 1100 mm MultiTx (several transmitters in one rack) yes	加入詢價
R&S®THU9evo (23.0 kW - 34.0 kW)	Rack configuration 2 racks Number of amplifiers 14 - 24 Dimensions (H x W x D) 2000 mm x 1200 mm x 1100 mm MultiTx (several transmitters in one rack) no	加入詢價
R&S®THU9evo (42.0 kW - 50.0 kW)	Rack configuration 3 racks Number of amplifiers 30 - 36 Dimensions (H x W x D) 2000 mm x 1800 mm x 1100 mm MultiTx (several transmitters in one rack) no	加入詢價
R&S®THU9evo (56.0 kW - 67.0 kW)	Rack configuration 4 racks Number of amplifiers 40 - 48 Dimensions (H x W x D) 2000 mm x 2400 mm x 1100 mm MultiTx (several transmitters in one rack) no	加入詢價
R&S®THU9evo (80.5 kW - 96.5 kW)	Rack configuration 6 racks Number of amplifiers 60 - 72 Dimensions (H x W x D) 2000 mm x 3600 mm x 1100 mm MultiTx (several transmitters in one rack) no	加入詢價

不確定需求規格?立即點擊讓我們協助您 CLOSE

The best even better

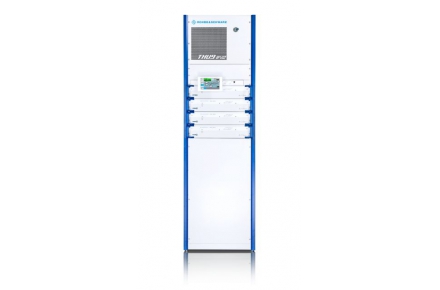

R&S®THV9evo liquid-cooled VHF transmitter family

●Maximum efficiency through many years of Doherty experience
●Adaptive efficiency optimization for minimized energy costs
●Built on the strengths of the established R&S®THU9/R&S®THV9 platform
●Convenient operation with ensured service quality
●Future-ready ATSC 3.0 support

詳細規格型號清單/詢價

更多型號規格

型號規格	描述	加入詢價
R&S®THV9evo (1.3 - 15 kW)	Rack configuration 1 rack Number of amplifiers 1 - 12 Dimensions (H x W x D) 2000 mm × 600 mm × 1100 mm MultiTx (several transmitters in one rack) yes	加入詢價
R&S®THV9evo (20.0 - 30.0 kW)	Rack configuration 2 racks Number of amplifiers 16 - 24 Dimensions (H x W x D) 2000 mm × 1200 mm × 1100 mm MultiTx (several transmitters in one rack) no	加入詢價

不確定需求規格?立即點擊讓我們協助您 CLOSE

The best even better

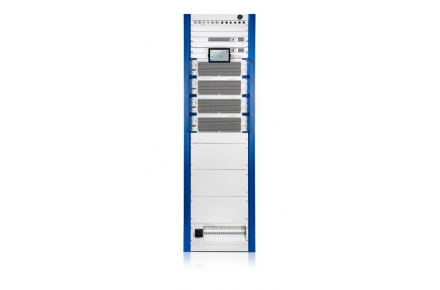

R&S®TMU9evo air-cooled UHF transmitter

●Effortless operation
●Unparalleled energy efficiency of up to 40 %
●Long-life transmitter design
●Ensured quality of service
●Prepared for the future challenges

詳細規格型號清單/詢價

更多型號規格

型號規格	描述	加入詢價
R&S®TMU9evo - 400 W	Model (output power) 400 W Rack configuration optional Number of amplifiers 1 Dimensions (H x W x D) 483 mm x 132 mm (3 HU) x 550 mm 19 in x 5.2 in x 21.65 in MultiTx (several transmitters in one rack) up to 6	加入詢價
R&S®TMU9evo - 750 W	Model (output power) 750 W Rack configuration optional Number of amplifiers 2 Dimensions (H x W x D) 483 mm × 352 mm (8 HU) × 550 mm 19 in x 13.9 in x 21.65 in MultiTx (several transmitters in one rack) up to 4	加入詢價
R&S®TMU9evo - 1.15 kW	Model (output power) 1.15 kW Rack configuration optional Number of amplifiers 3 Dimensions (H x W x D) 483 mm × 440 mm (10 HU) × 550 mm 19 in x 17.3 in x 21.65 in MultiTx (several transmitters in one rack) up to 3	加入詢價
R&S®TMU9evo - 2.3 kW	Model (output power) 2.3 kW Rack configuration 1 rack Number of amplifiers 6 Dimensions (H x W x D) 600 mm × 2000 mm (42 HU) × 800 mm 23.6 in x 78.7 in x 31.49 in MultiTx (several transmitters in one rack) no	加入詢價
R&S®TMU9evo - 3.0 kW	Model (output power) 3.0 kW Rack configuration 1 rack Number of amplifiers 8 Dimensions (H x W x D) 600 mm × 2000 mm (42 HU) × 800 mm 23.6 in x 78.7 in x 31.49 in MultiTx (several transmitters in one rack) no	加入詢價
R&S®TMU9evo - 4.5 kW	Model (output power) 4.5 kW Rack configuration 2 racks Number of amplifiers 12 Dimensions (H x W x D) 1200 mm × 2000 mm (42 HU) × 800 mm 47.24 in x 78.74 in x 31.49 in MultiTx (several transmitters in one rack) no	加入詢價
R&S®TMU9evo - 6.0 kW	Model (output power) 6.0 kW Rack configuration 2 racks Number of amplifiers 16 Dimensions (H x W x D) 1200 mm × 2000 mm (42 HU) × 800 mm 47.24 in x 78.74 in x 31.49 in MultiTx (several transmitters in one rack) no	加入詢價

不確定需求規格?立即點擊讓我們協助您 CLOSE

The best even better

R&S®TMV9evo air-cooled VHF transmitter

●Effortless operation
●Unparalleled energy efficiency of up to 50 %
●Long-life transmitter design
●Ensured quality of service
●Prepared for the future challenges

詳細規格型號清單/詢價

更多型號規格

型號規格	描述	加入詢價
R&S®TMV9evo - 350 W	Rack configuration optional Number of amplifiers 1 Dimensions (H x W x D) 483 mm x 198 mm (4.5 HU) x 550 mm MultiTx (several transmitters in one rack) up to 4	加入詢價
R&S®TMV9evo - 750 W	Rack configuration optional Number of amplifiers 2 Dimensions (H x W x D) 483 mm x 198 mm (4.5 HU) x 550 mm MultiTx (several transmitters in one rack) up to 4	加入詢價
R&S®TMV9evo - 1.45 kW	Rack configuration optional Number of amplifiers 2 Dimensions (H x W x D) 483 mm x 484 mm (11 HU) × 550 mm MultiTx (several transmitters in one rack) up to 3	加入詢價
R&S®TMV9evo - 2.2 kW	Rack configuration 1 rack Number of amplifiers 3 Dimensions (H x W x D) 600 mm × 2000 mm (42 HU) × 800 mm MultiTx (several transmitters in one rack) 2	加入詢價
R&S®TMV9evo - 2.9 kW	Rack configuration 1 rack Number of amplifiers 4 Dimensions (H x W x D) 600 mm × 2000 mm (42 HU) × 800 mm MultiTx (several transmitters in one rack) no	加入詢價
R&S®TMV9evo - 3.6 kW	Rack configuration 1 rack Number of amplifiers 5 Dimensions (H x W x D) 600 mm × 2000 mm (42 HU) × 800 mm MultiTx (several transmitters in one rack) no	加入詢價
R&S®TMV9evo - 4.3 kW	Rack configuration 1 rack Number of amplifiers 6 Dimensions (H x W x D) 600 mm × 2000 mm (42 HU) × 800 mm MultiTx (several transmitters in one rack) no	加入詢價
