● Realtime demodulation
● Advanced frontend and FPGA-based demodulation
● Preselection with additional 75 Ω RF input
● Integrated spectrum analyzer
● Video decoder for MPEG-2, H.264 (MPEG-4), HEVC and AVS/AVS+

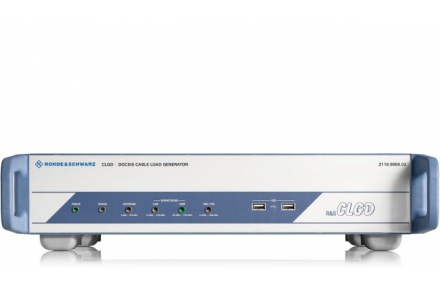

●FDX – Full duplex DOCSIS generator
●Downstream: 47 MHz to 1218 MHz/1794 MHz, Upstream: 5 MHz to 204 MHz
●Frequency range in upstream: 5 MHz to 204 MHz
●DOCSIS 3.1, DOCSIS 3.0, J.83/A/B/C and analog TV
●Up to eight times 192 MHz signal bandwidth for DOCSIS 3.1; ARB generator bandwidth up to 200 MHz

●Multi-standard platform for broadcast, navigation, cellular and wireless applications
●Full software option defined vector signal generator with 5" touchscreen
●Modern RF signal generation concept from 4 kHz up to 7.125 GHz
●High output power up to +25 dBm
●Modulation bandwidth up to 240 MHz

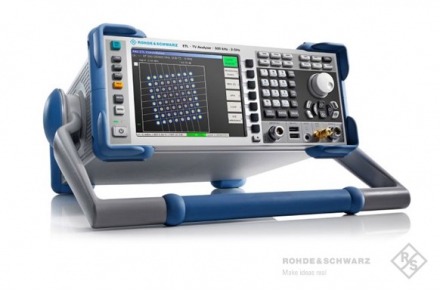

●Support of DVB-T2, DVB-T/DVB-H and ISDB-T digital TV standards
●Wide frequency range up to 3.6 GHz or 8 GHz
●Precision MER measurement in realtime (typ. 44 dB at 500 MHz)
●Wide input level range from –76 dBm to +10 dBm
●Spectrum analyzer DANL of typ. –165 dBm (1 Hz)

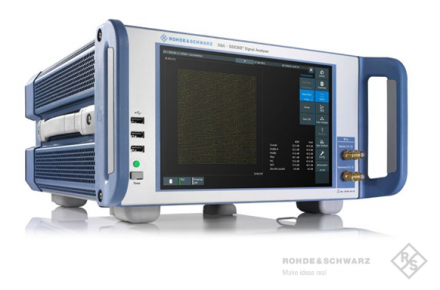

●Demodulation and analysis of DOCSIS 3.0/3.1 and EuroDOCSIS 3.0 downstream and upstream signals in realtime
●Demodulation and analysis of digital TV signals (J.83/A/B/C, DVB-C) in realtime
●Residual MER ≥ 50 dB with DOCSIS 3.1
●Residual MER ≥ 56 dB with SC-QAM
●Dual receivers for downstream (47 MHz to 1794 MHz) and upstream (5 MHz to 204 MHz)
